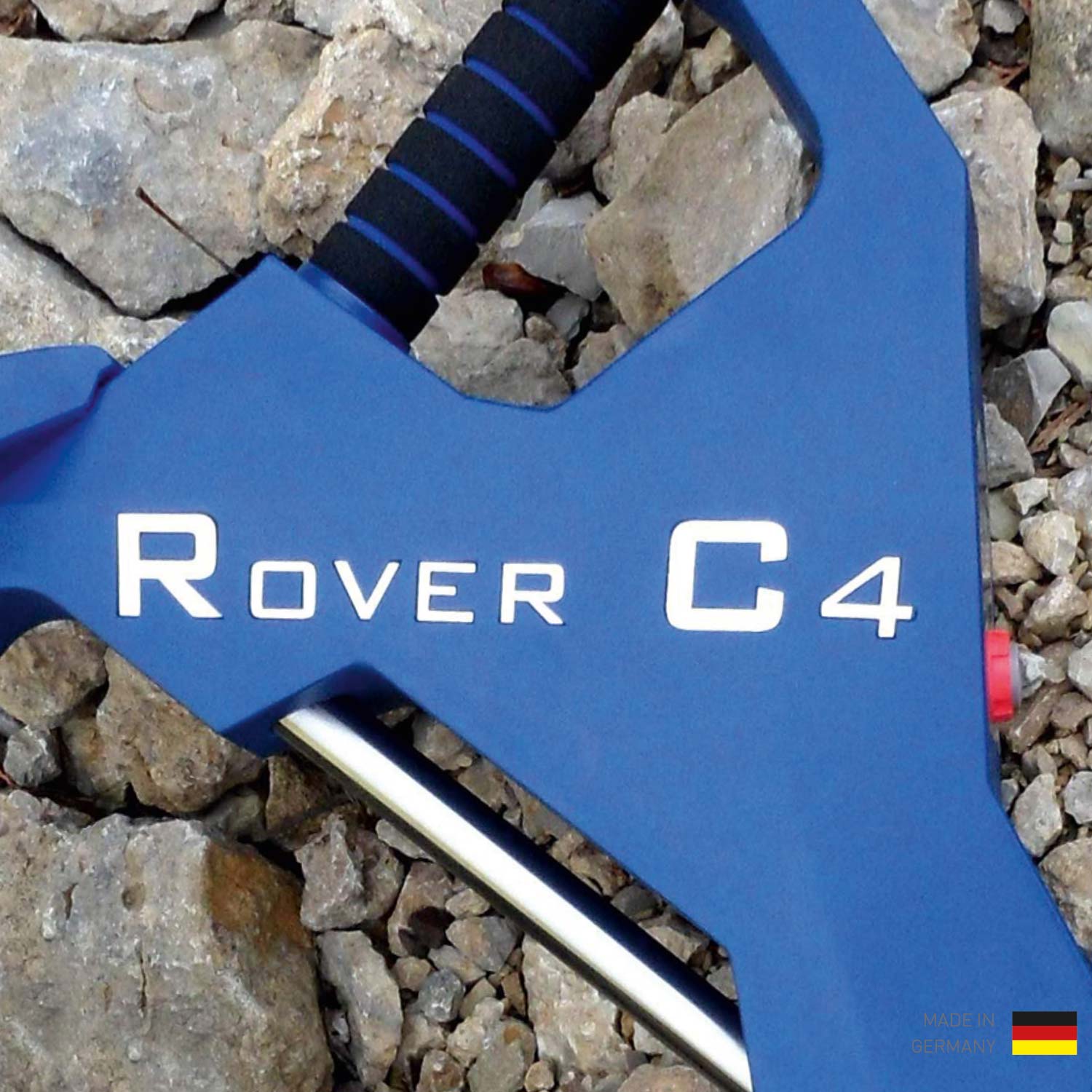

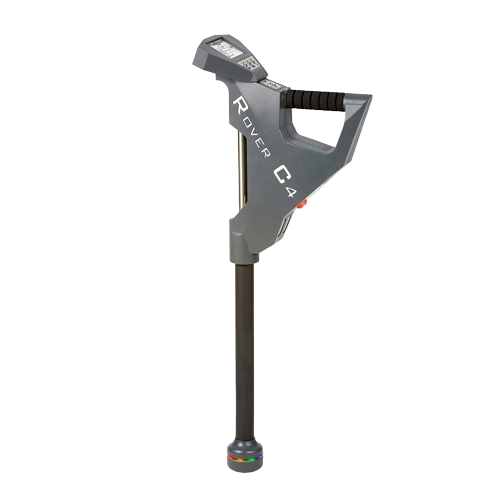

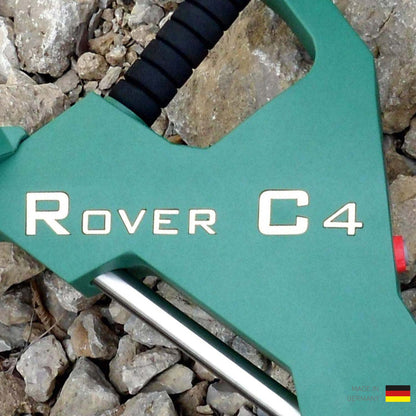

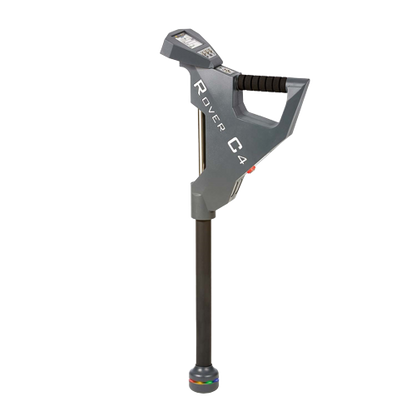

OKM Rover C4 (2017-2021)

[tabs active="1"] [spinner image="okm-rover-c4-spin-"] [tabs active="2"] [slider type="videos" product="rover-c4-2017-2021"] [tabs active="3"] [icons type="features" product="rover-c4-2017-2021"] [tabs active="4"]

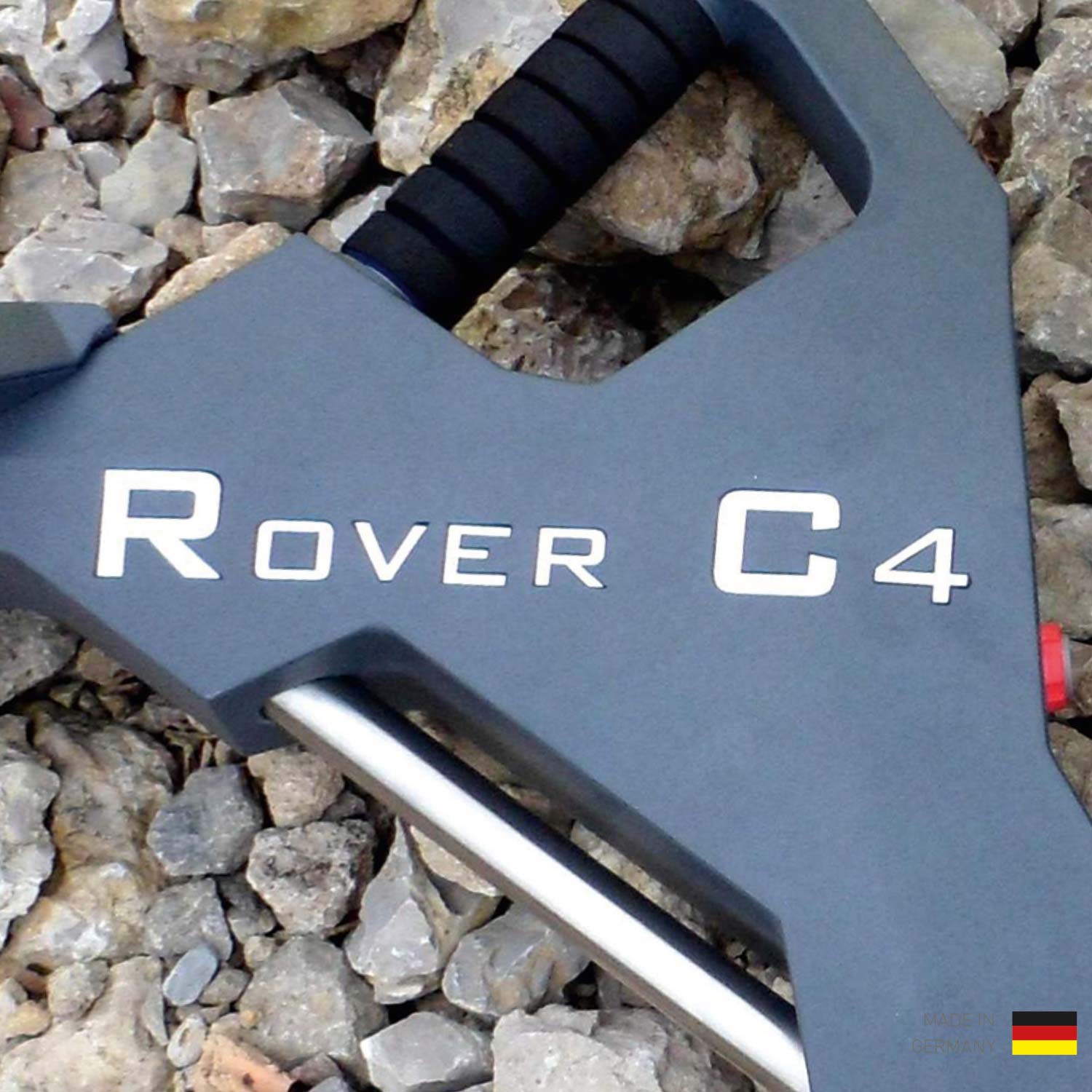

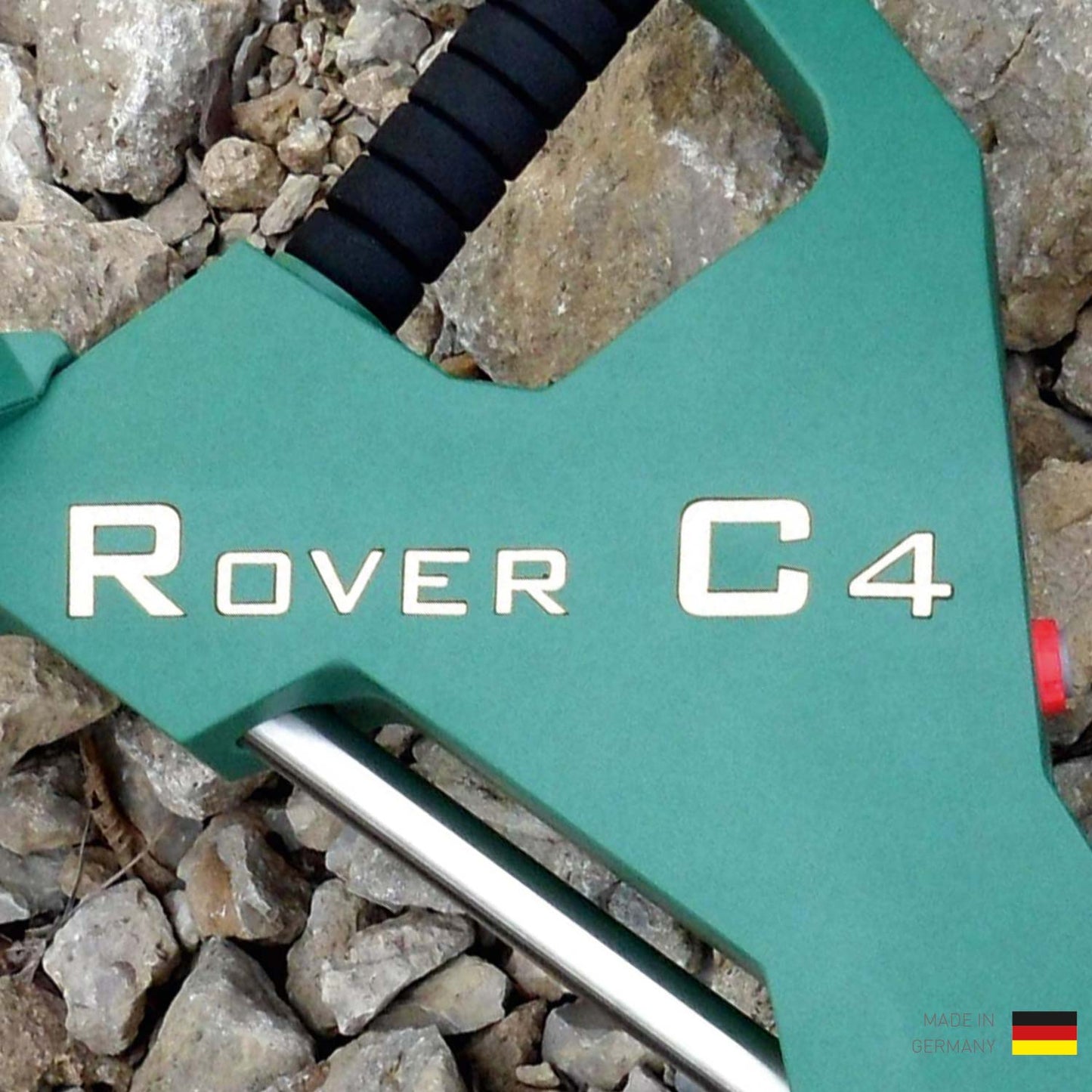

Rover C4 is a versatile treasure and cavity detector that is particularly easy to use. It detects lost treasures (coins, rings, jewelry, etc.) and cavity structures (tunnels, caves, chambers, burial sites, etc.) using the Ground Scan and Mineral Scan measurement functions. The measurement data is graphically displayed with the software Visualizer 3D.

Special Features of Rover C4

• Supported operating modes: Ground Scan, Pinpointer, Mineral Scan, Magnetometer
• Graphical user interface in many different languages
• Operational touchscreen with alternative hardware buttons
• Multilevel LED lighting for usage of the detector in darkness
• Wireless data transfer
• 4 separate memory areas to store measuring data
• Standard Probe and Super Sensor with innovative LED Orbit

[tabs active="5"] [icons type="usecases" product="rover-c4-2017-2021"] [tabs active="6"]

Control unit

• Dimensions (H x W x D): 390 x 300 x 140 mm
• Weight: about 1.5 kg
• Input voltage (max.): 11 – 13 V DC / 6 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz

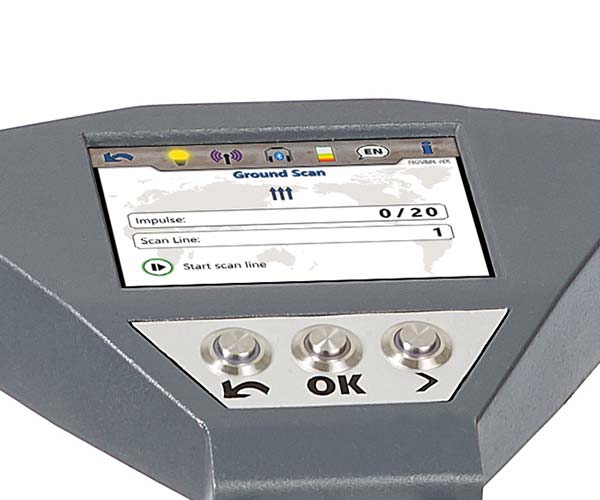

• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Air humidity: 5% – 75%

Standard Probe

• Weight: 0.4 kg
• Length: 445 mm
• Diameter tube / LED Orbit: 35 mm / 65 mm
• Technology: SCMI-15-D

Super Sensor

• Weight: 0.9 kg
• Length: 960 mm
• Diameter tube / LED Orbit: 50 mm / 65 mm
• Technology: SCMI-15-D

Data transmission

• Technology: Bluetooth
• Frequency: 2.4 – 2.4835 GHz
• Maximum Transfer Rate: 1 Mbps
• Receiving Sensitivity: –85 dBm
• Maximum Range: approx. 10 m

Computer minimum requirements

• CD-ROM drive: minimum 4x
• Interface (Data transmission): USB
• Free disk space: minimum 50 MB
• Working memory (RAM): minimum 256 MB
• Graphic card: minimum 128 MB, OpenGL-compatible
• Processor: minimum 1.2 GHz
• Operating system: Windows Vista, Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation. [tabs active="7"] [slider type="reviews"] [tabs active="8"] [downloads]
